JOHNSON CONTROLS AP-VMA1420-0 METASYS VAV CONTROLLER - USED / GOOD
The AP-VMA1420 Modular Variable Air Volume Assembly is part of the VMA1400 series, which normally contains a controller, a pressure sensor unit, and/or actuator-type tools. Part number AP-VMA1420 was designed to have cooling capabilities, as well as reheating capabilities. This product may be housed in a single pre-assembled unit. The recommended ambient operating temperature ranges from 0 to 50 degrees Celsius, with non-condensing relative humidity levels of 10 to 95 percent. Additionally, the recommended ambient storing temperature ranges from -40 to 70 degrees Celsius. The AP-VMA1420 includes an integrated actuator with a stepper class motor drive system for quick and precise damper placement. Although this module is designed for pressure-independent solitary duct systems, it may also be used in series or parallel supporter boxes, supply/exhaust operations, and dual duct structures.
| Manufacturer | Johnson Controls Metasys |
|---|---|
| Supply Voltage | 20 to 30 VAC |
| Frequency Rating | 50/60 hertz |
| Actuator Rating | 4 N·m minimum (35 lb·in) |
| Agency Compliance | CSA, UL , FCC, C-tick, CE |
| Optional Fuse Current | 2.0 amperes |
| Ambient Operating Conditions | 0 to 50°C |
| Ambient Storage Conditions | -40 to 70°C |

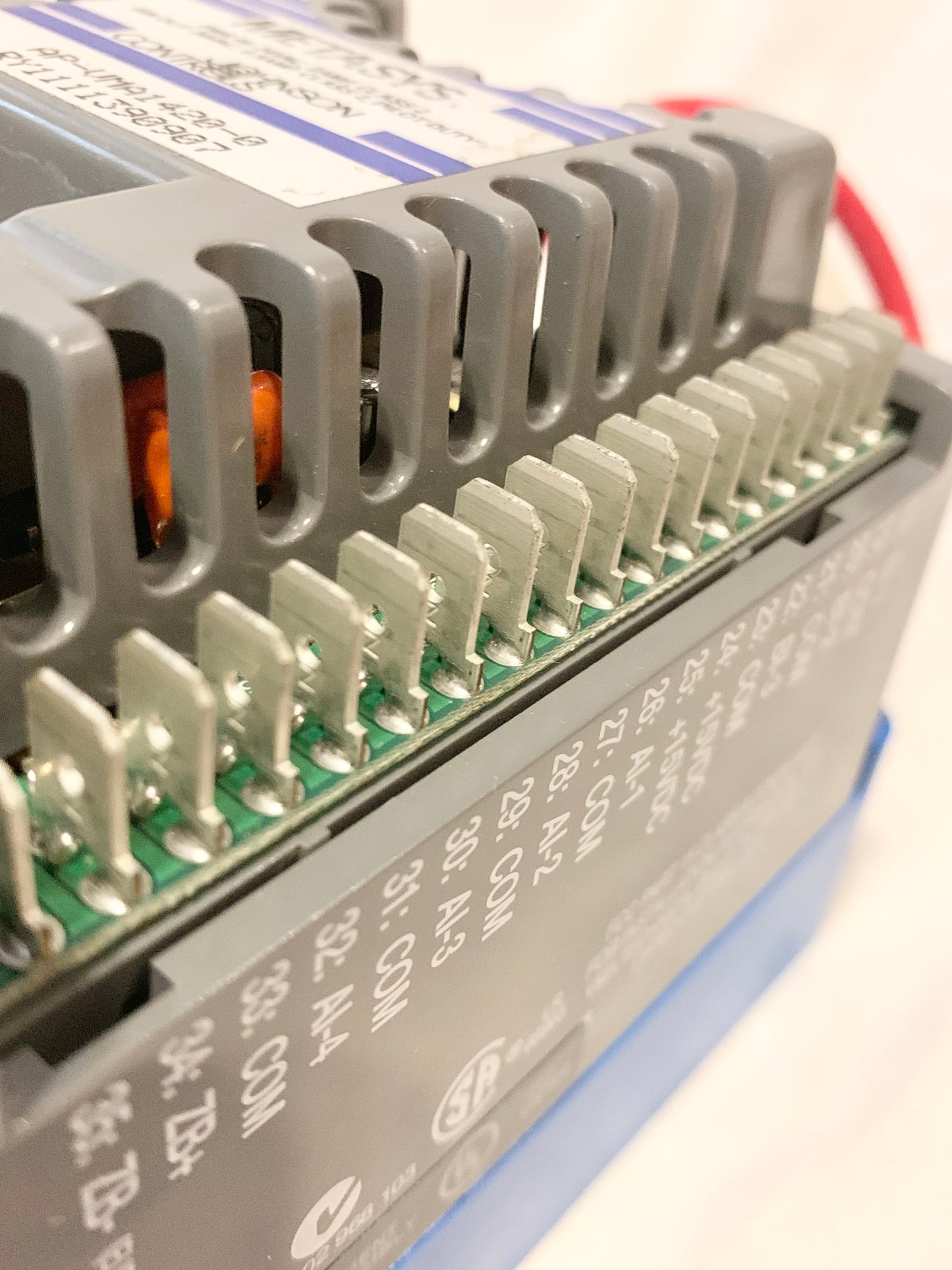

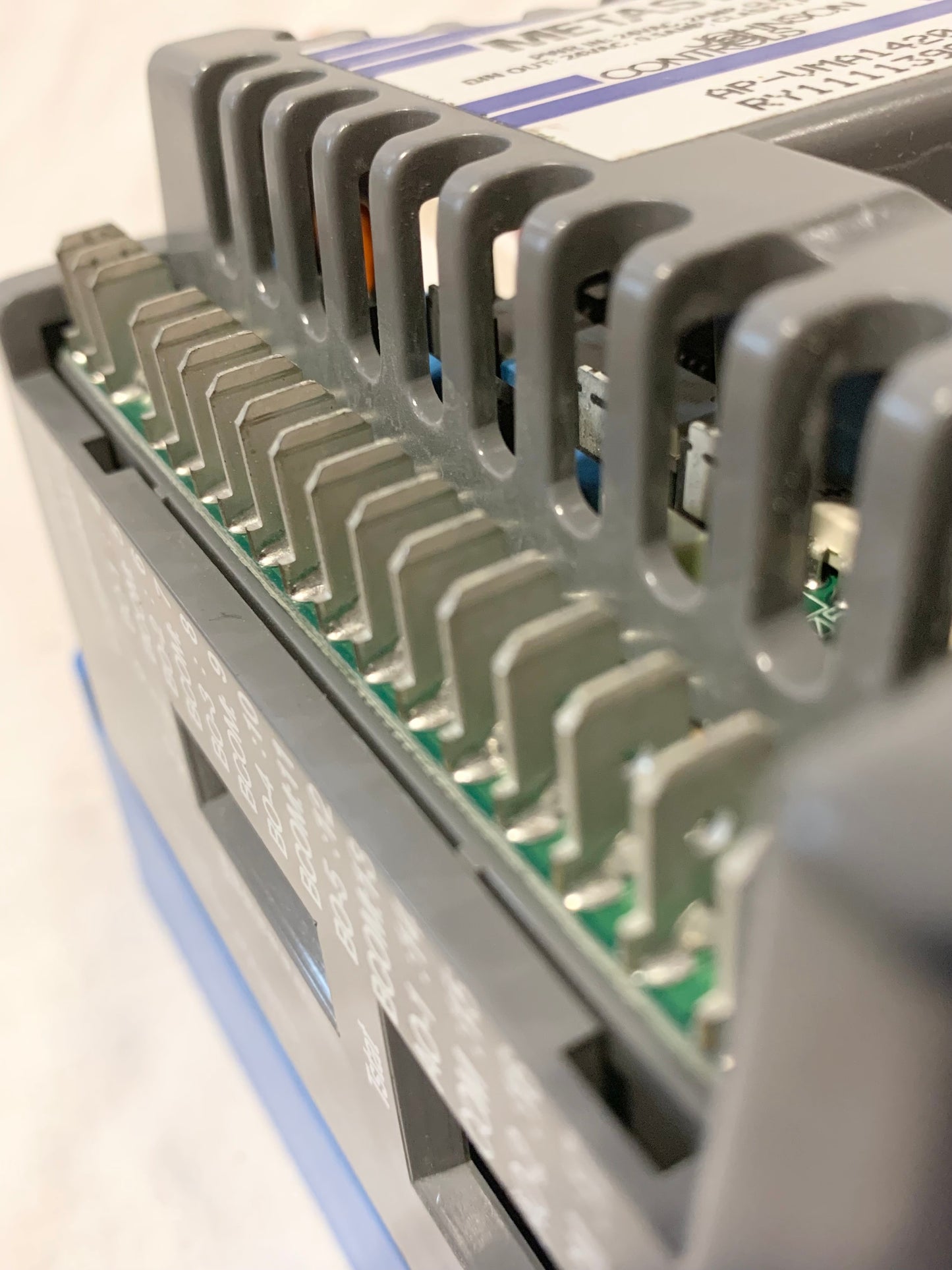

| Terminations | 6.3 mm |
| Analog Outputs | 0 to 10 VDC at 10 mA |
| Velocity Pressure | 0 to 374 Pascal |
| Power Consumption | 10 VA |
| Stepper Drive | 23,000 step resolution |
| Dimensions | 6 inches x 4 inches x 4 inches (length x width x height) |

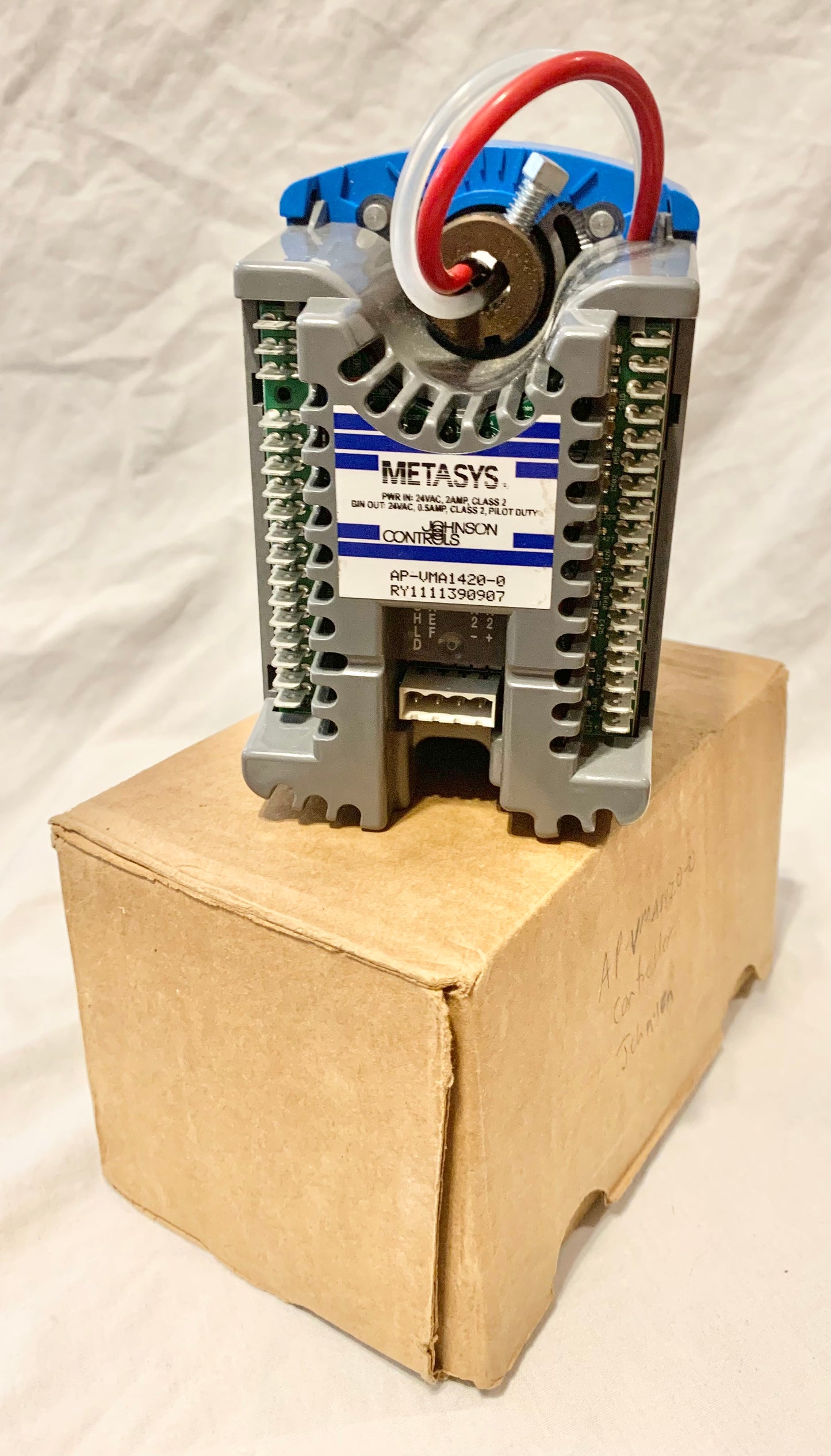

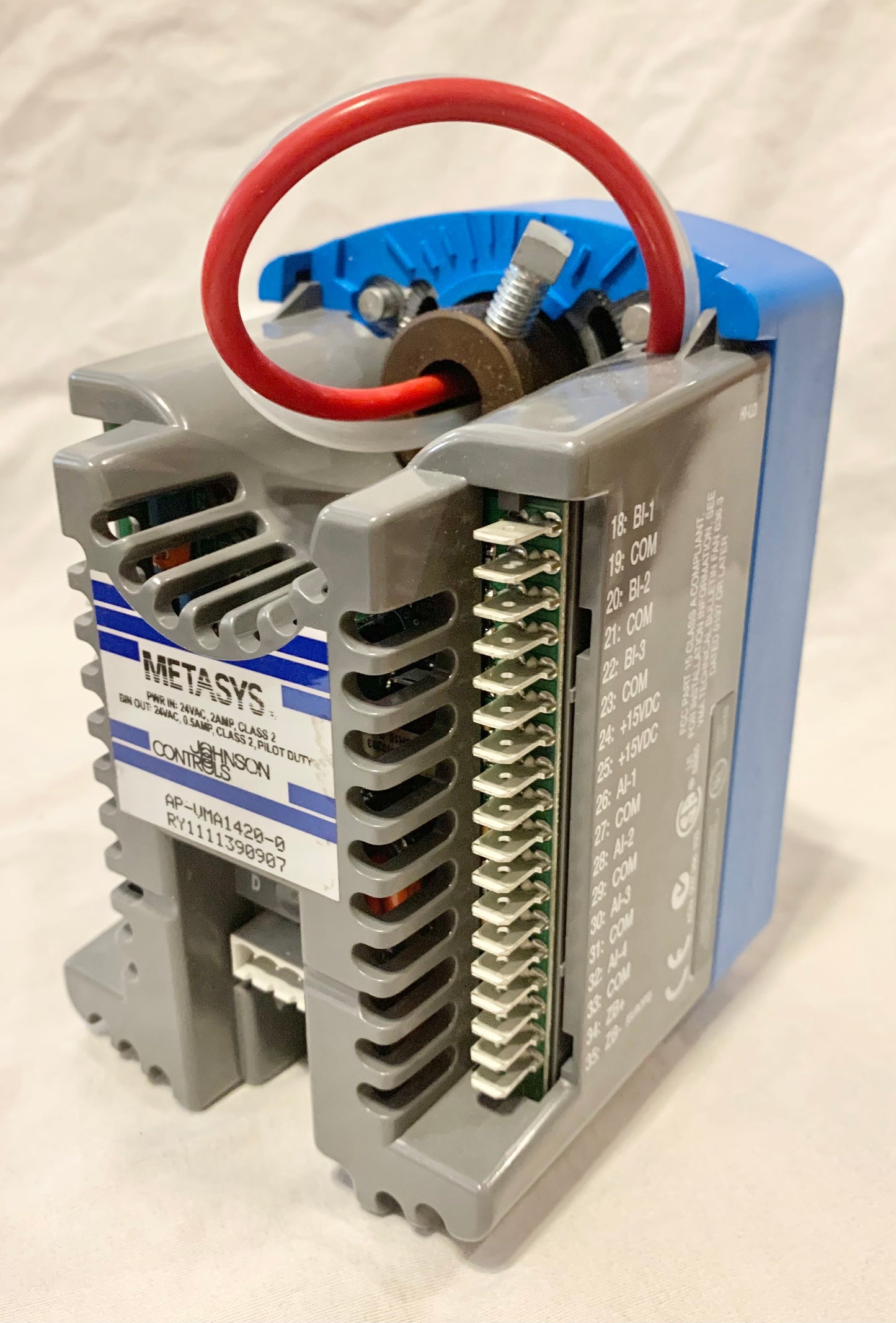

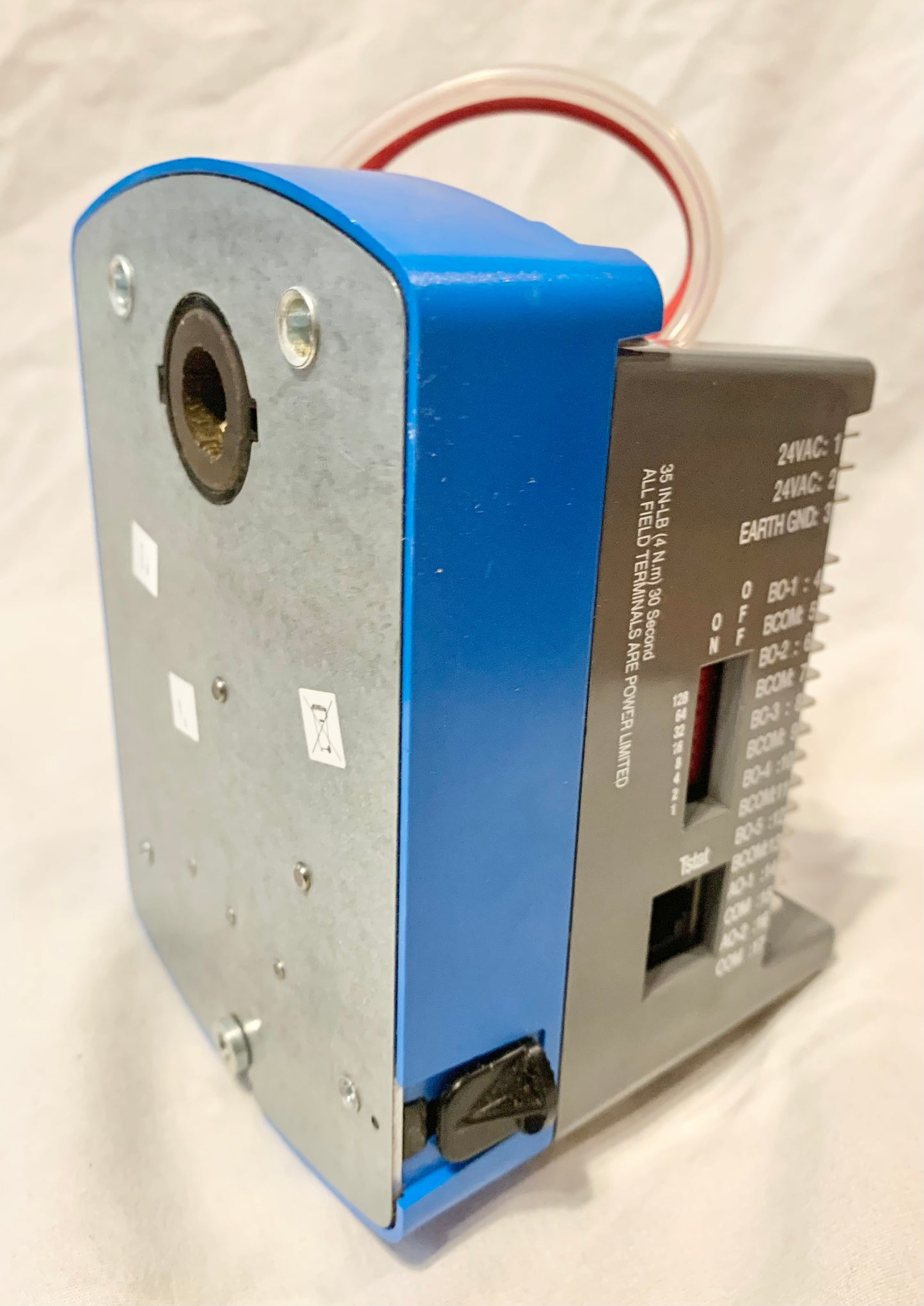

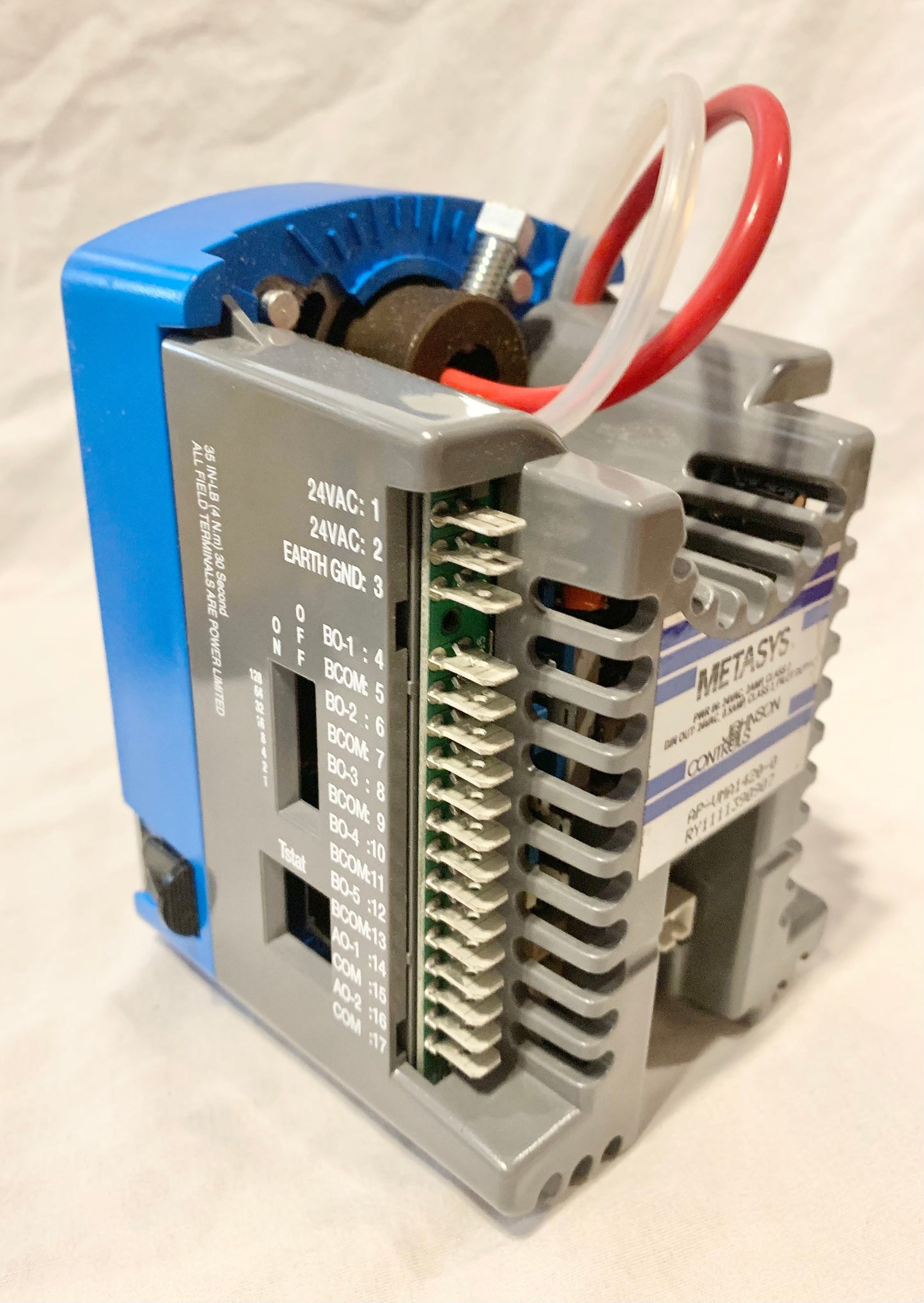

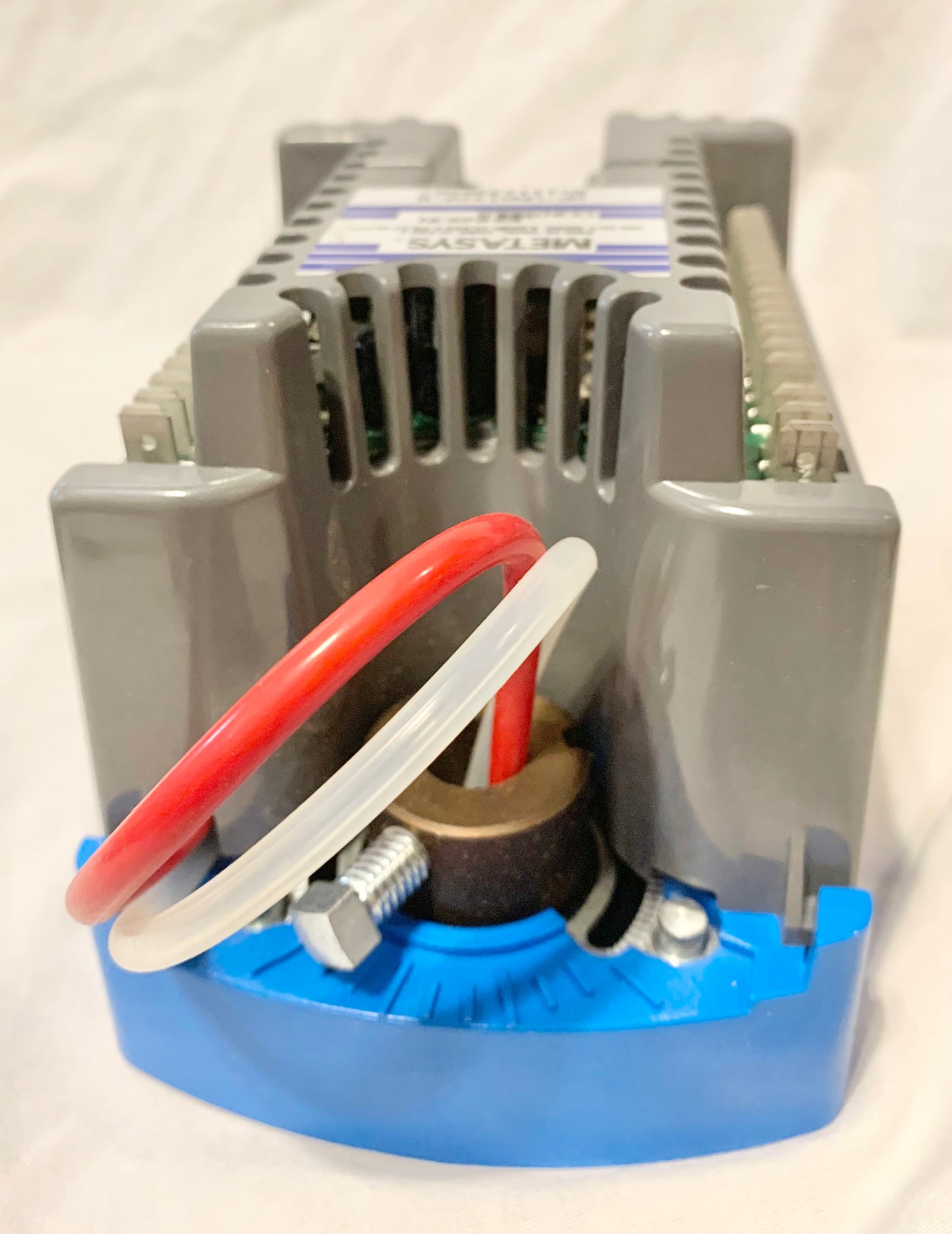

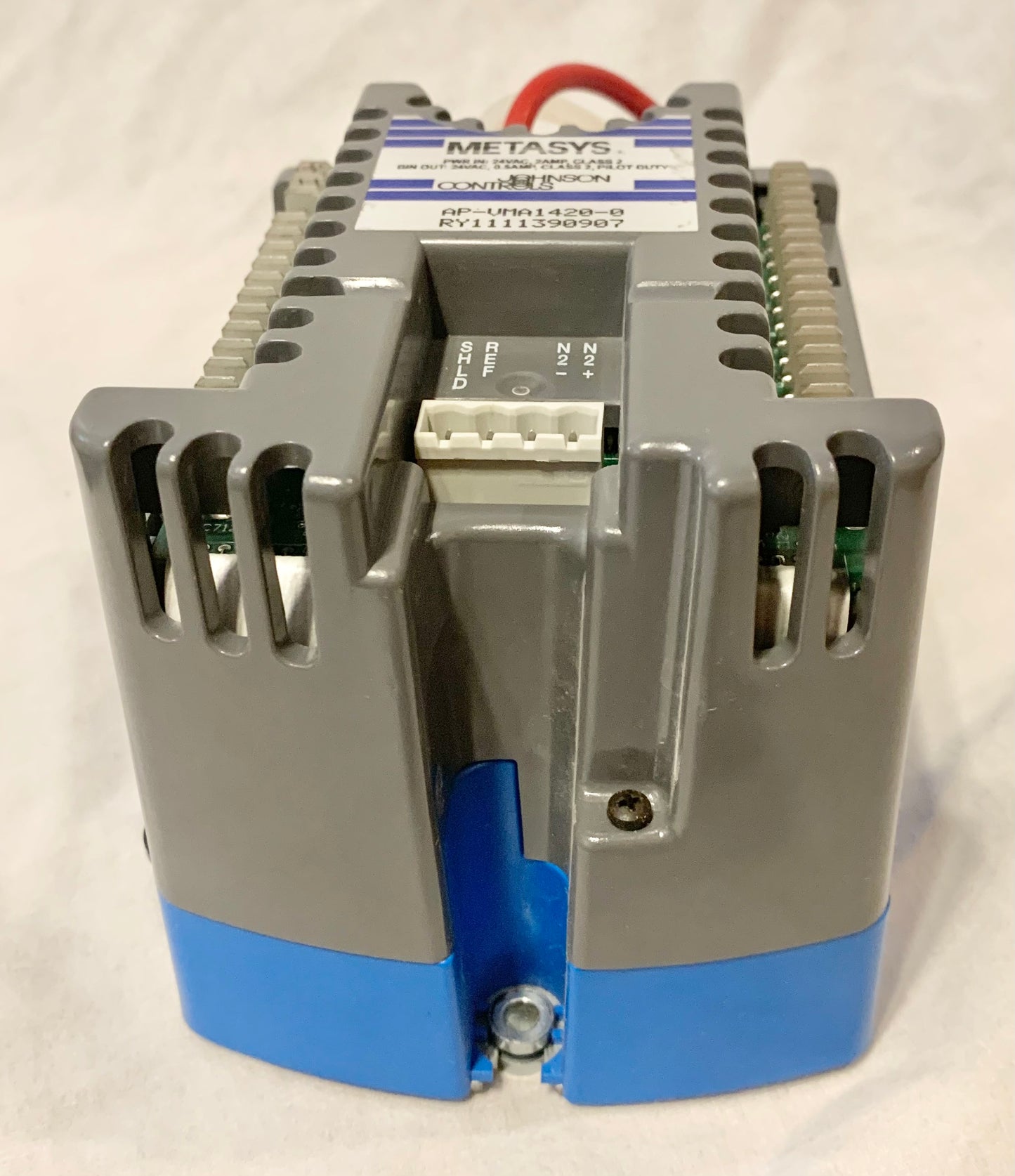

CONDITION: UNIT IS NEW OLD STOCK. NEVER INSTALLED. UNIT HAS NO WARRANTY FROM DASHBUYS.COM AND SOLD AS-IS. BOX MAY HAVE MINOR STORAGE WEAR. SEE ALL PICS FOR CONDITION DETAILS. PLEASE ASK ANY QUESTIONS BEFORE PURCHASING.
SHIPPING: FREE UPS / USPS ON ALL ORDERS OVER $200
