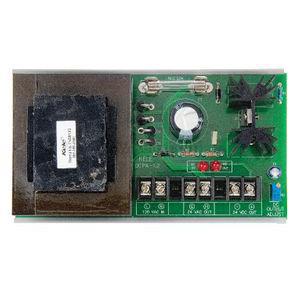

KELE DCPA-1.2 POWER SUPPLY - NEW OLD STOCK
KELE DCPA-1.2 POWER SUPPLY - NEW OLD STOCK
Couldn't load pickup availability
KELE DCPA-1.2 POWER SUPPLY - NEW OLD STOCK
Application: Building Automation System, HVAC, BAS
Current Output: 1.20 A
Mount: Snap Track, Panel
Over Current Protection: Fuse
Primary Voltage: 24 VAC
Type: DC Power Supply
Primary Voltage Input: 120 VAC
DC Voltage Output Type: Adjustable
DC Voltage Output Range: 24 VDC
DC Current Output: 1.2 Amps
Supply Voltage: 120 VAC
Output Voltage: 24 VAC 24 VDC (regulated) Adjustable 1.3-27 VDC
Supply Frequency: 50/60 Hz
Regulation: 1.5% @ full rated current
Output Current: Total combined current from both outputs not to exceed 1.2A @ 24V
Over Current Protection: 2.5A for combined outputs (GF-2.5 fuse)
Mounting: Snap-track (included)
Temperature Stability: 1%
Operating Temperature: 32° to 130°F (0° to 55°C)
Operating Humidity: 95% RH non-condensing
Dimensions: 3.0"H x 3.25"W x 6.0"L (7.62 x 8.26 x 15.24 cm)
Weight: 2.3 lb (1 Kg)
- 24 VAC and 24 VDC output from the same power supply
- LED indication of AC input and DC output status
- Overload protection
- Screw terminals with pressure plates
- Snap-track mounted
- Adjustable DC output
- Full-wave rectified
Series Description:
The DCPA-1.2 universal AC/DC power supply can deliver 30VA of power. This compact, track-mounted supply accepts 120 volt AC and delivers both 24 volt AC and regulated 24 volt DC power for control circuits, making it well suited to building automation systems, BAS, HVAC applications and industrial uses.
CONDITION: UNIT IS NEW OLD STOCK. NEVER INSTALLED. UNIT HAS NO WARRANTY FROM DASHBUYS.COM AND SOLD AS-IS. BOX MAY HAVE MINOR STORAGE WEAR. MAIN PHOTO IS STOCK PHOTO ONLY. PLEASE ASK ANY QUESTIONS BEFORE PURCHASING.
SHIPPING: FREE UPS / USPS ON ALL ORDERS OVER $200
