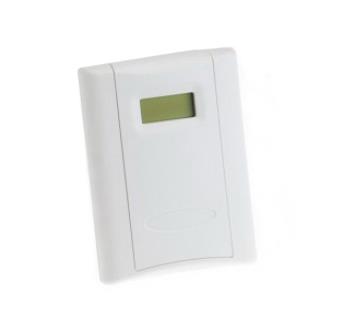

VERIS CWLSXX WALL CO2 SENSOR, LCD SCREEN - NEW OLD STOCK / UNSEALED
VERIS CWLSXX WALL CO2 SENSOR, LCD SCREEN - NEW OLD STOCK / UNSEALED
Couldn't load pickup availability
VERIS CWLSXX WALL CO2 SENSOR, LCD SCREEN - NEW OLD STOCK / UNSEALED
SPECIFICATIONS
| Application Zone | : | Living Space |
| Application | : | Wall |
| Brand | : | Veris |
| CO2 Measurement Accuracy | : | ±30 ppm ±2% of measured value |
| CO2 Measurement Range | : | 0 - 2000 ppm | 0 - 5000 ppm |
| CO2 Measurement Repeatability | : | ±20 ppm ±1% of measured value |
| CO2 Measurement Resolution | : | 1 ppm |
| CO2 Sensor Type | : | NDIR |
| Color | : | Black |
| Dimension Depth | : | 1.2" (30 mm) |
| Dimension Height | : | 4.8" (122 mm) |
| Dimension Width | : | 3.5" (89 mm) |
| Display Resolution | : | 2 Rows x 8 Characters |
| Display Size | : | 1.2" x 0.6" (30,5 mm x 14 mm) |
| Display Type | : | LCD |
| Electrical Wiring Size | : | 24 - 18 AWG (0.22 - 0.75 mm²) |
| Enclosure Material | : | ABS Plastic |
| Humidity Calibration Certificate | : | None |
| Measurement Type | : | CO2 | Temperature |
| Mounting | : | Wall |
| Operating Humidity | : | 0 - 95% RH, non-condensing |
| Operating Temperature | : | 32 - 122 °F (0 - 50 °C) |
| Output Specifications | : | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
| Outputs | : | Analog output | Resistive temperature output |
| Override | : | No |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | CWL |
| Response Time | : | CO2: <60 seconds for 90% step change |
| Setpoint | : | No |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Nominal | : | 20 - 30 VDC |
| Temperature Calibration Certificate | : | None |
| Temperature Measurement Accuracy | : | ±0.6 °F (±0.3 °C) |
| Temperature Measurement Range | : | 32 - 122 °F (0 - 50 °C) |
| Temperature Sensor Type | : | 100 Ohm Platinum RTD |
FEATURES
CWL carbon dioxide (CO2) sensors maximize energy savings, while helping optimize ventilation. These sensors allow ventilation systems to be controlled by the amount of CO2 present in a space. The CWL series detect fluctuations in CO2 levels and signal ventilation systems to provide an inlet of fresh air optimal for the space at a given time saving energy and increasing tenant comfort.
- Microprocessor based design increases accuracy and reduces installation time
- Self-calibrating - innovative self-calibration algorithm easy to maintain
- Non-dispersive infrared technology (NDIR) repeatable to +/-20 ppm +/-1% of measured value high accuracy measurement
- Snap-on faceplate no screws required, making installation and service easy
- Field-selectable outputs for operation flexibility
- Integrated probe - integrated transducer and probe eliminates the need to install a separate pick-up tube
- Fully replaceable, digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS sensor
CONDITION: UNIT IS NEW OLD STOCK. SEALED. NEVER INSTALLED. UNIT HAS NO WARRANTY FROM DASHBUYS.COM AND SOLD AS-IS. BOX MAY HAVE MINOR STORAGE WEAR. MAIN PHOTO IS STOCK PHOTO ONLY. PLEASE ASK ANY QUESTIONS BEFORE PURCHASING.
SHIPPING: FREE UPS / USPS ON ALL ORDERS OVER $200
